5.

Inverter

5.2

Single Phase Inverter

12 questions
  1. 2069 ChaitraChapter 5: Inverter5.2 Single Phase Inverter

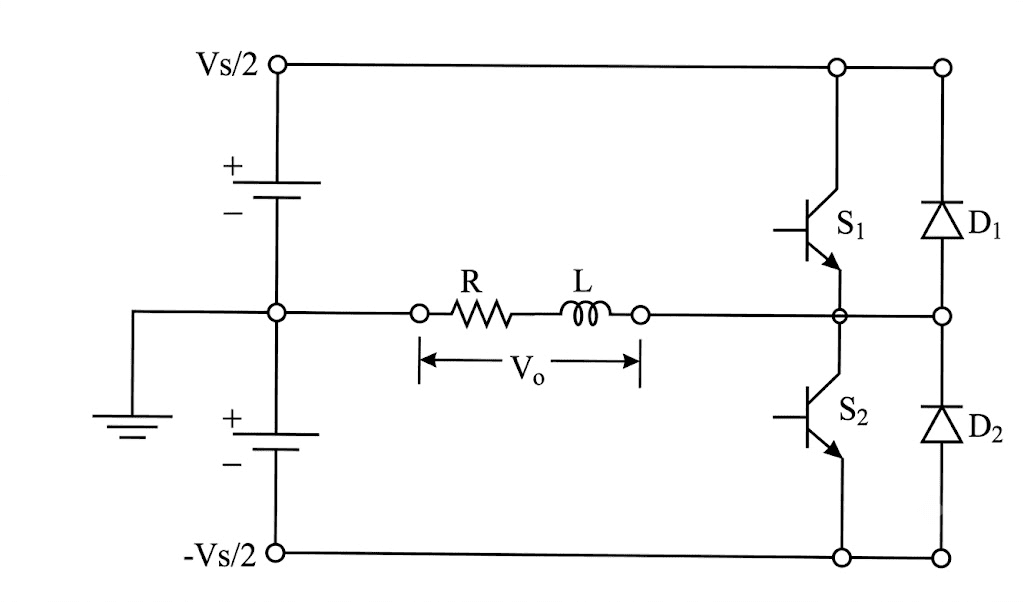

    Figure shows a single phase square wave inverter with inductive load. The required frequency of output voltage is 120Hz. Calculate the ON period and OFF period of switches S1 and S2. Derive the time domain equation of load current for first positive half cycle of output voltage.


    ASK ON:ChatGPTClaudeAnswers8 marks Asked 1×
  2. 2073 ShrawanChapter 5: Inverter5.2 Single Phase Inverter

    A single phase full bridge inverter with DC input voltage of Vs=400V and generating output square wave of 50Hz is connected to inductive load having R=10Ω and L=50mH. Calculate the magnitude and phase of fundamental component and third harmonic component of output voltage and load current.


    ASK ON:ChatGPTClaudeAnswers8 marks Asked 1×
  3. 2070 AshadhChapter 5: Inverter5.2 Single Phase Inverter

    A single phase inverter output voltage waveform (square wave, ±100V, T=0.02 sec) with inductive load R=10Ω and L=20mH connected in series. Calculate the magnitude and phase of fundamental component of the output voltage and write down the time domain equation of fundamental component of load current.


    ASK ON:ChatGPTClaudeAnswers8 marks Asked 1×
5.3

Single Phase Inverter with ac Motor Load

4 questions
5.4

Three Phase Inverter

9 questions
5.5

Fourier Analysis of Three Phase Inverter

6 questions
5.6

Pulse Width Modulated Inverter

9 questions
