Transient Analysis in RLC Circuit by Laplace Transform

4.6

Response RL Circuit with DC/Exponential/Sinusoidal Excitation

22 questions
  1. 2076 Ashwin2074 ChaitraChapter 4: Transient Analysis in RLC Circuit by Laplace Transform4.6 Response RL Circuit with DC/Exponential/Sinusoidal Excitation

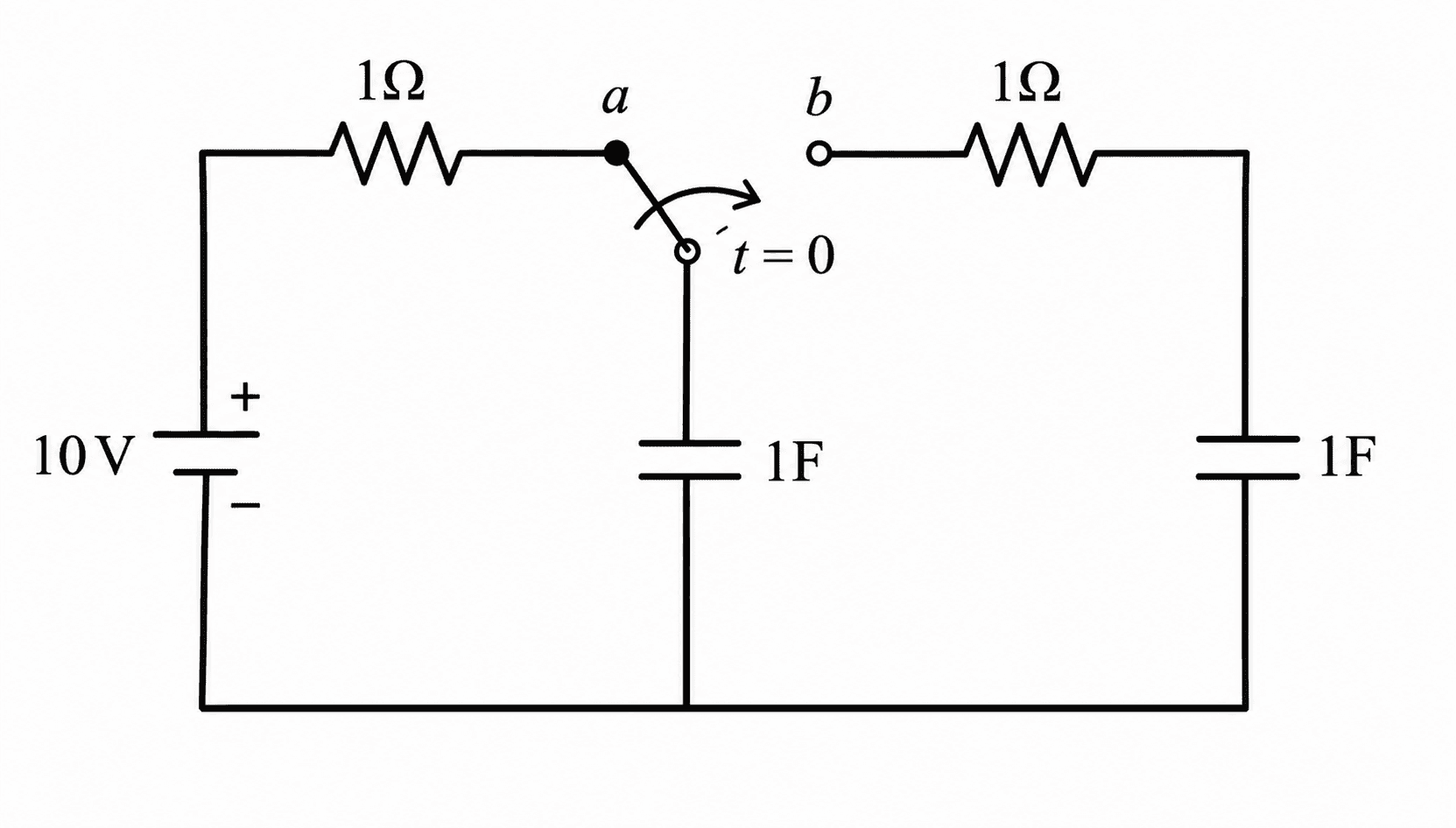

    Keeping the switch at position 'a' for a long time, if the switch is moved to position 'b' at t = 0 in the circuit shown below, find expressions for current through and voltage across capacitor using Laplace Transform method.


    ASK ON:ChatGPTClaudeAnswers8 marks Asked 2×
  2. 2067 AshadhChapter 4: Transient Analysis in RLC Circuit by Laplace Transform4.6 Response RL Circuit with DC/Exponential/Sinusoidal Excitation

    In the network shown, the switch is closed at t = 0. Find the current supplied by the source using Laplace transform method.
    [IMAGE: Circuit with 10V source, 1Ω resistor, 1H inductor, 2Ω resistor, and 1/2F capacitor.]

    ASK ON:ChatGPTClaudeAnswers8 marks Asked 1×
  3. 2067 AshadhChapter 4: Transient Analysis in RLC Circuit by Laplace Transform4.6 Response RL Circuit with DC/Exponential/Sinusoidal Excitation

    With the switch S in position 1, the circuit shown below attains equilibrium. At time t = 0, the switch is moved to position 2. Find the voltage across 5MΩ resistor (Use Laplace transform method).
    [IMAGE: Circuit with 1000V source, 1MΩ resistor, C1=1μF, C2=2μF capacitors, and 5MΩ resistor.]

    ASK ON:ChatGPTClaudeAnswers8 marks Asked 1×
4.7

Response of RC Circuit with DC/Exponential/Sinusoidal Excitation

3 questions
4.8

Response of Series RLC Circuit with DC/Exponential/Sinusoidal Excitation

17 questions
4.9

Response of Parallel RLC Circuit with Exponential Excitation

2 questions
4.10

Transfer Functions Poles and Zeros of Networks

22 questions
